5 Steps To Calculate Amp Hours Of A Battery Bank

Do you want to install a battery bank in your home or office to improve your power supply but don’t know how many batteries you’ll need? This post will get you started!

A battery bank is an ideal solution for ensuring a steady power supply in your RV, camper van, or home with a solar off-grid system.

However, before you buy the batteries or install the power station, it is important to know how to calculate the capacity amp hours of a battery bank. Not having enough battery capacity will result in a shortage of power supply, while having too many batteries will add unnecessary expense to your system, not to mention the complexity and difficulty of maintenance.

In this guide, I discuss how to calculate the amp hour of a battery bank to help you determine the number of batteries you need to set up efficient power storage for your off-grid system.

What Are Battery Banks and Why Do You Need Them?

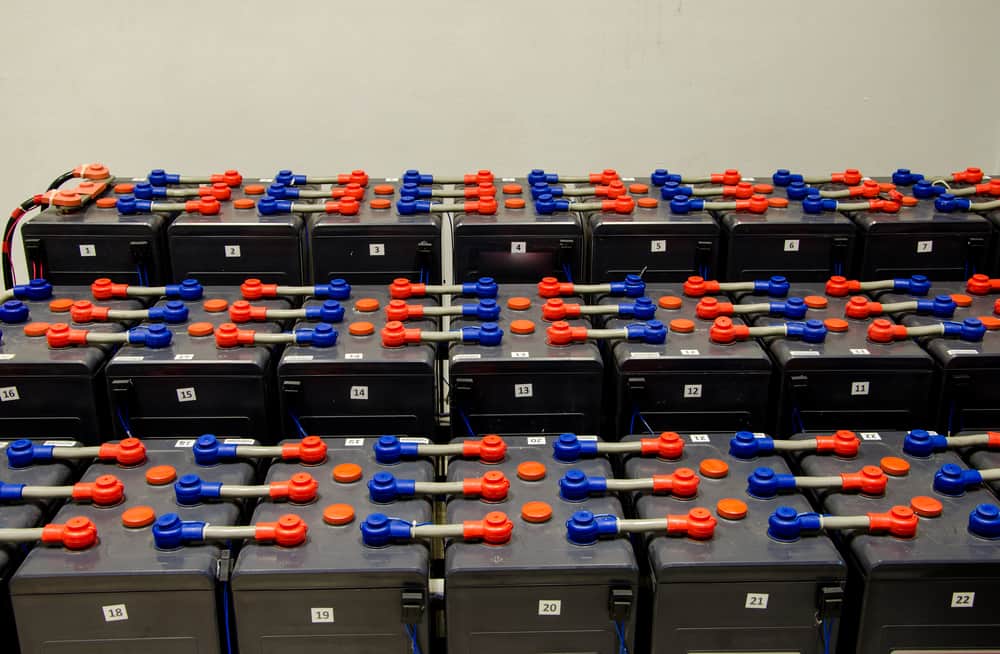

A battery bank can be made up of a single battery or several batteries connected in series or parallel to form an energy storage bank.

Batteries are built to produce a specific voltage and amp-hour capacity, and by connecting them, you can increase either the voltage or the amp-hour capacity, or both.

When two or more batteries are connected in series, the voltage increases while the amperage rating remains constant. For example, connecting two 12Volt (50Ah) batteries in series will produce 24Volts while maintaining a current rating of 50Amp-hour.

But when two or more batteries are connected in parallel, their amperage rating increases while the voltage remains constant. That is, two 12 Volt (50Ah) batteries connected in parallel will produce 100 Amp-hour while maintaining a 12 Volt output.

Batteries can also be connected in a series/parallel configuration. With this method, you get to increase their voltage output and current rating.

However, you will need at least four batteries to accomplish this. For example, two sets of 12 Volt (50 Ah) batteries connected in parallel and joined to form a series, will produce a 24 Volt (100 Ah) battery bank.

Battery banks are commonly used to store energy in a solar power system. However, they can be used in other off-grid renewable energy systems, such as wind turbines.

They store excess energy from your solar or wind system and provide consistent power to your home and office even when the sun is no longer shining, or the wind has stopped blowing.

Battery banks are also a low-cost energy system that ensures you no longer have to rely on municipal utilities to deliver electricity to your home for most of the year. Sometimes, you can even sell the stored energy back to the grid.

What Are Battery Banks and Why Do You Need Them?

What Are Amp Hours?

Simply put, an amp hour measures how long a battery bank can provide power before discharging completely. Or the amount of amperage that a battery bank can provide per hour.

For example, a battery bank with a 10,000 Ah capacity will last twice as long as a battery with a 5000 Ah rating when used under similar conditions. Amp hour rating is usually denoted by the abbreviation “Ah” or “mAh” (milli-amp hours) for smaller applications.

Calculating the exact amp hours (Ah) of a battery bank is essential to determine the size of energy storage you need to power your home.

How Do You Calculate Amp Hours of Battery Bank?

The run time of a battery bank is easy to calculate irrespective of if it’s lead acid batteries or lithium-ion. Simply multiply the number of batteries connected in parallel by their capacity. That is if ten 12Volt (50Ah) batteries are connected in parallel, the battery bank’s amp-hour is;

  • 10 × 50Ah = 500Amp-hour.

However, the main issue you’re likely to face is determining how long the battery load needs to operate before requiring a recharge. That can be a little complicated, but with the following steps, it becomes easy;

Step 1:

Determine the total power of the appliances in your home to be powered by the battery bank. The power of each device is usually represented in Wattage. And you can find the wattage of any appliance on the back of the appliance or the nameplate.

Here are some appliances and their wattage rating:

Appliance Wattage
Television 85W – 150W
Energy efficient bulb 2W – 17W
Desktop computer 200W – 350W
Laptop 65W – 95W
Electric Kettle 1200W – 1500W
Freezer 100W – 400W
Water Heater 11200W – 3000W
Air Conditioner 3000W – 3500W
Water Dispenser 350W – 500W

Step 2

Estimate your daily power consumption. This can be calculated in Watt-hours over a set period. To do this, add the power consumption of each electrical device you use and multiply the device’s wattage rating by the number of hours it will be used for.

Let’s assume the table below is your daily power consumption;

Appliance Units Watts Hours used per day Watts-hour Daily
Bulb 10 15 12 1800
Fans 3 65 6 1170
Television 2 85 8 1360
Air Conditioner 1 1150 5 5750
Fridge 1 120 10 1200
Total       11280

The table above shows that you consume about 11,280 Watts-hours energy every day.

Step 3:

Decide how many days you want your battery bank to provide power even when your solar system is not working; multiply that by the power consumption above.

Here is a simple calculation of your power storage for two days:

  • 11,280 × 2 = 22,560 Wh.

How Do You Calculate Amp Hours of Battery Bank?

Step 4:

Estimate the lowest possible temperature at which your battery bank will operate when installed. To do so, you must first determine the average temperature in your region and grid location.

Batteries are less efficient at lower temperatures, so if you install your battery bank in a low-temperature area, you will need to add a bit extra wattage to compensate for the shortage.

To add extra to your battery bank, multiply your battery watt-hours by 1.02 to 1.2, depending on the temperature in your area.

For example, if the average temperature in your area is 10 degrees Celsius, then 1.2 × 22,560 = 27,072Wh

Step 5:

Now, calculate your battery bank’s capacity by converting Wh to Ah. To do so, use the formula of dividing the watt-hours by the voltage of your batteries.

As previously stated, battery banks can be connected in series to increase voltage. The most common battery bank voltages are 12V, 24V, and 48V.

For example, if your battery bank is a 12-volt battery, the ampere-hours are calculated as follows:

  • Wh ÷ V = Ah
  • 27,072Wh ÷ 12V = 2,256Ah.

According to the above illustration, you require a 2,256 amp-hour battery to power your home.

How Many Batteries Do You Need For Your Power Plant?

How Many Batteries Do You Need For Your Power Plant?

Now that you know how to calculate the Amp Hours of a battery bank, you may be wondering how many batteries you need to create a battery storage system for your off-grid solar panel.

The number of batteries required to build a battery bank is determined by several factors, including target Amp hour capacity, bank voltage, and battery specification.

For example, if you need a 2,256Ah battery capacity to power your home for two days and intend to use 200Ah (12V) deep-cycle batteries, the number of batteries required to build a battery bank will be calculated as follows;

  • Amp hour capacity = 2,256Ah
  • Bank Voltage = 12V
  • Battery specification = 200Ah (12V)
  • 12V = 2,256Ah ÷ 200Ah = 11 Batteries.

But if you wish to increase the voltage rating of your battery bank to 24V using series and parallel connections, then you’ll need double the number of batteries.

  • 24V = 2,256Ah ÷ 200Ah × 2 = 22 batteries.

Also, it is strongly advised that you use the same type and size of batteries throughout your power plant. Consistency in battery size and model will keep your solar battery bank secure and operational.

As a result, here are some best practices for constructing a battery bank:

  • The battery bank must be proportional to the solar panel to ensure that the batteries are fully charged.
  • The batteries to be used must have the same voltage and amp hour rating.
  • Batteries must be the same age and type of chemistry.
  • Batteries must be of the same brand and manufacturer, preferably from the same production set.
  • The voltage of the battery bank must match the system requirements. The voltage specification can be found on the solar inverter.

Conclusion

Building an energy storage bank for your home or office should be simple if you know how to calculate the amp hour of a battery bank. And in this post, I have outlined the simple steps to do that for all types of batteries, including lithium batteries;

  • Determine the wattage rating of each electrical appliance in your home.
  • Estimate your daily power consumption in watt-hours.
  • Determine how many days you want your battery bank to power your home.
  • Convert Wh to Ah to know your battery capacity in amp hours.
  • Find out how many batteries you need for your battery bank based on the estimated amp hour, voltage, and battery specifications.

I hope I’ve been able to answer your query about how to calculate the amp hour of a battery bank and what size battery bank you need to power your home.

I always appreciate your feedback, so be kind to leave a comment below!
